200W Waterproof Solar PV Junction Box UL94 V0 Flame Class IP67

Product Categories
SHENZHEN HODAS TECHNOLOGY COMPANY
Contact Now

200W Waterproof Solar PV Junction Box UL94 V0 Flame Class IP67

  • 1
  • 2

Brand Name : Hochiry

Model Number : GF20X

Certification : TUV

Place of Origin : CHINA

MOQ : 100Pcs

Price : 3.5USD/PCS

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 50000 Pieces per Week

Delivery Time : 3-5 days

Packaging Details : Standard carton(500sets/ctn), 21g/set N.W:10.8KG G.W:11.3KG Size: 40*26*31cm

Product Name : PV Solar Junction Box

Power : 300W

Safety Class : Class I I

Rated Voltage : 1000V DC

Flame Class : UL944-V0

Waterproof protection : IP67

Rated Currrent : 25A

Contact Now

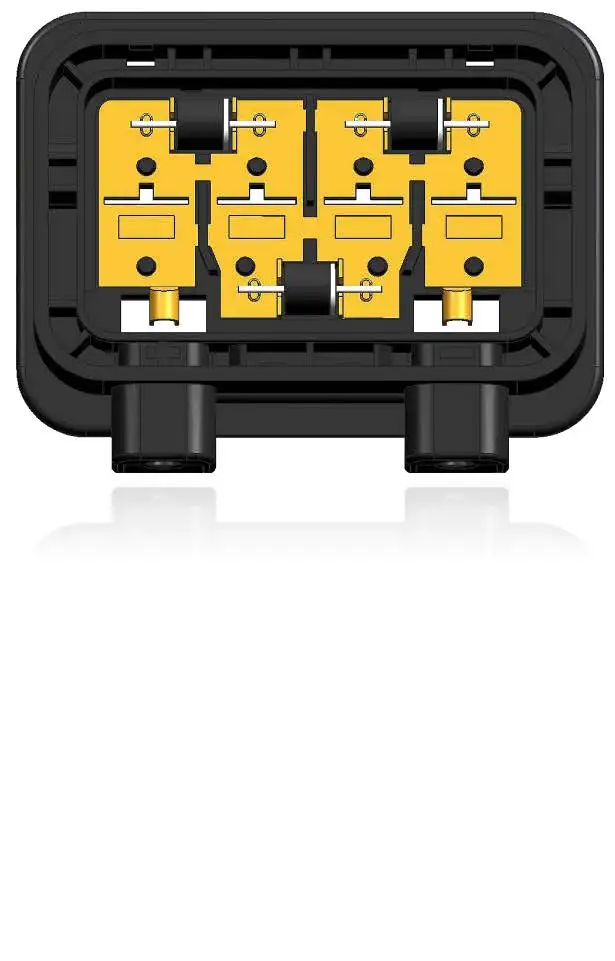

200W UL94 V0 Flame Class Waterproof Solar Photovoltaic Solar PV Junction Box

Product Description

PV-JB08-A junction box is beautiful and small in structure design, easy to install, and can be used for automatic production line assembly. The whole copper conductor has better heat dissipation, and the overall glue filling design has excellent waterproof, dustproof, safe and reliable performance.

The protection grade reaches IP68. The overall and matching connector has excellent performance, low heat and power consumption.
The connection of bus bar and cable is welded and crimped respectively The electrical performance is safe and reliable.
Item No. PV -JB08-A
Rated current 15A
Working voltage 100V
Rated voltage DC 1500V
Operating temperature -40~+85℃
Degree of protection IP67
Flame class UL94-V0
Pollution degree class A
Connecting capacity 1x4mm2 12AWG
Waterproof structure glue pouring
Connection method welding

200W Waterproof Solar PV Junction Box UL94 V0 Flame Class IP67
200W Waterproof Solar PV Junction Box UL94 V0 Flame Class IP67
200W Waterproof Solar PV Junction Box UL94 V0 Flame Class IP67
200W Waterproof Solar PV Junction Box UL94 V0 Flame Class IP67

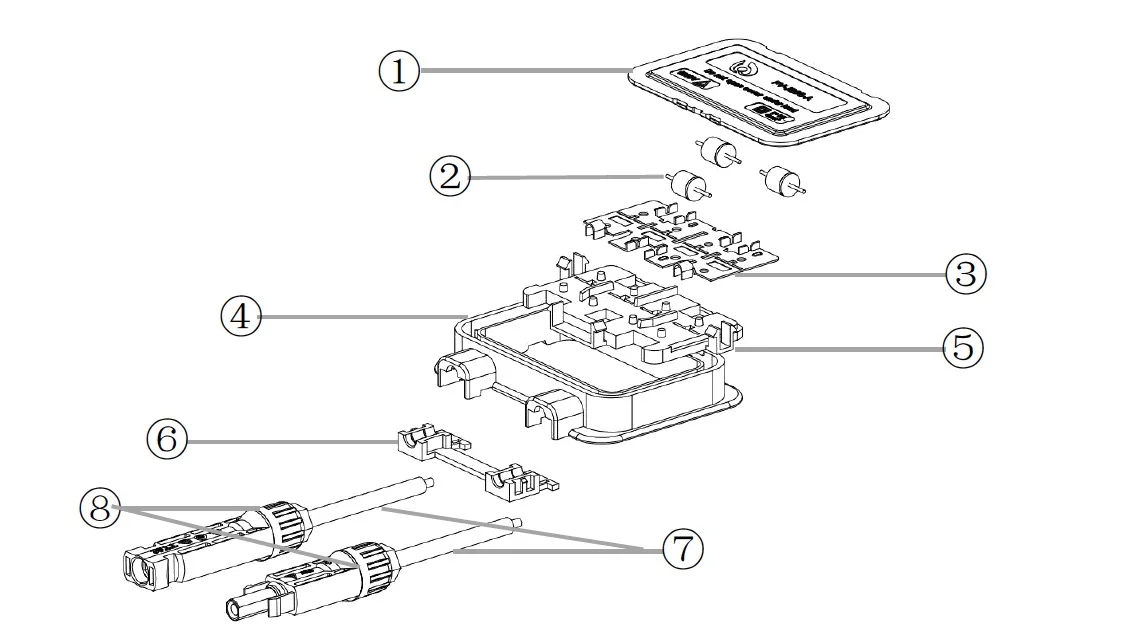

Material and specification
Number parts name type QTY
① Lid PPE+PS 9406P(f1) 1
② Diode 30PV045 3
③ Support H62, copper 1
④ Box PPE+PS 9406P(f1) 1
⑤ Floor PA66, FR7025V0F(+) 1
⑥ Pressing block PPE+PS 9406P(f1) 2
⑦ Cable 1x4,0mm2; 1500VDC 2
⑧ Connector PV-TT02 1

Number of diodes
Diod model Rated current Rated voltage Number
30PV045 30A 45V 3
